Pololu Tic T500 USB Multi-Interface Stepper Motor Controller
Pololu Tic T500 USB Multi-Interface Stepper Motor Controller
Free shipping within Sweden from 470 SEK
Under 470 SEK: 65 SEK. Rest of the EU from 229 SEK, depending on weight. Every parcel is tracked.
Need a larger quantity?
Volume pricing for schools and companies
Get a quote with price and lead time for larger quantities.
For schools, companies, clubs and project orders.
Order-to-ship: ordered from our distributor when you place your order and shipped to you from Kalmar, Sweden.

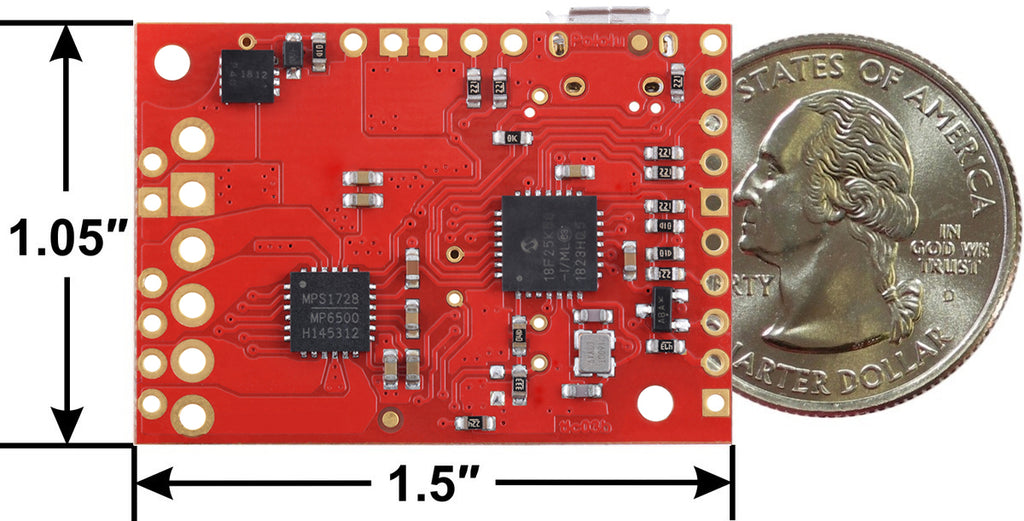

The Pololu Tic T500 is a USB-configurable controller for basic open-loop control of one bipolar stepper motor, built on the MP6500 driver IC. It supports six control interfaces and runs from 4.5 V to 35 V with about 1.5 A per phase without a heat sink. Configure speed, acceleration and limits in Pololu's free software, then drive the motor from a PC, a microcontroller, an RC receiver or a plain potentiometer.
Highlights
- One bipolar stepper motor; open-loop speed or position control
- 4.5–35 V; about 1.5 A continuous per phase without heat sink, 2.5 A peak with cooling
- Interfaces: USB, TTL serial (5 V), I2C, RC servo pulses, analog voltage, quadrature encoder, STEP/DIR
- Microstepping full to 1/8 step; up to 50 000 steps per second
- Onboard 5 V regulator; free configuration software for Windows, Linux and macOS
Versions

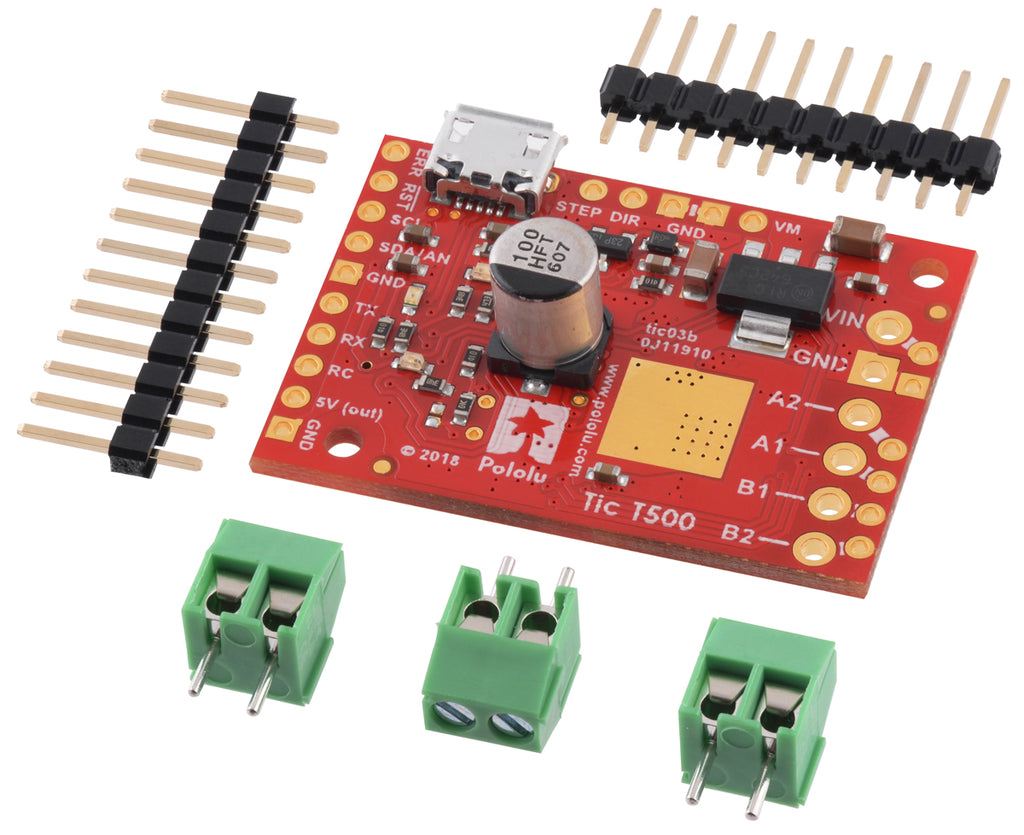

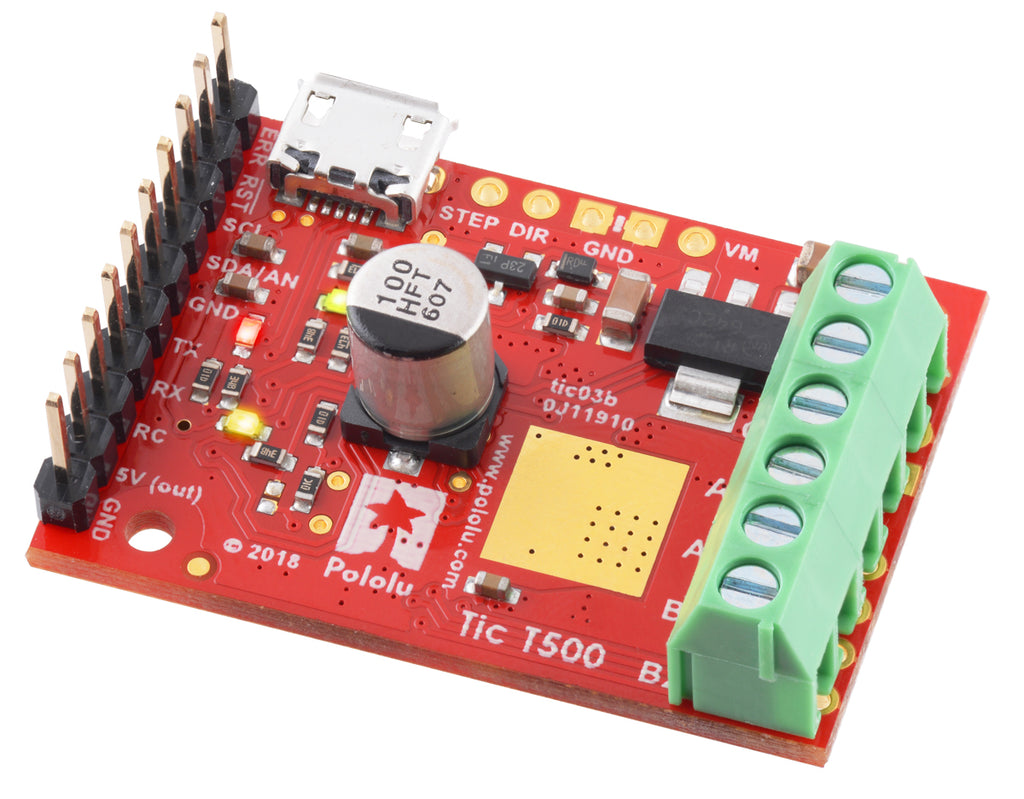

Connectors unsoldered: headers and terminal blocks included loose. Connectors soldered: header pins and terminal blocks pre-installed.
Documentation: Pololu product page and user's guide.
Manufacturer: Pololu Corporation, Las Vegas, USA. Importer: Gadwave, Kalmar, Sweden.
