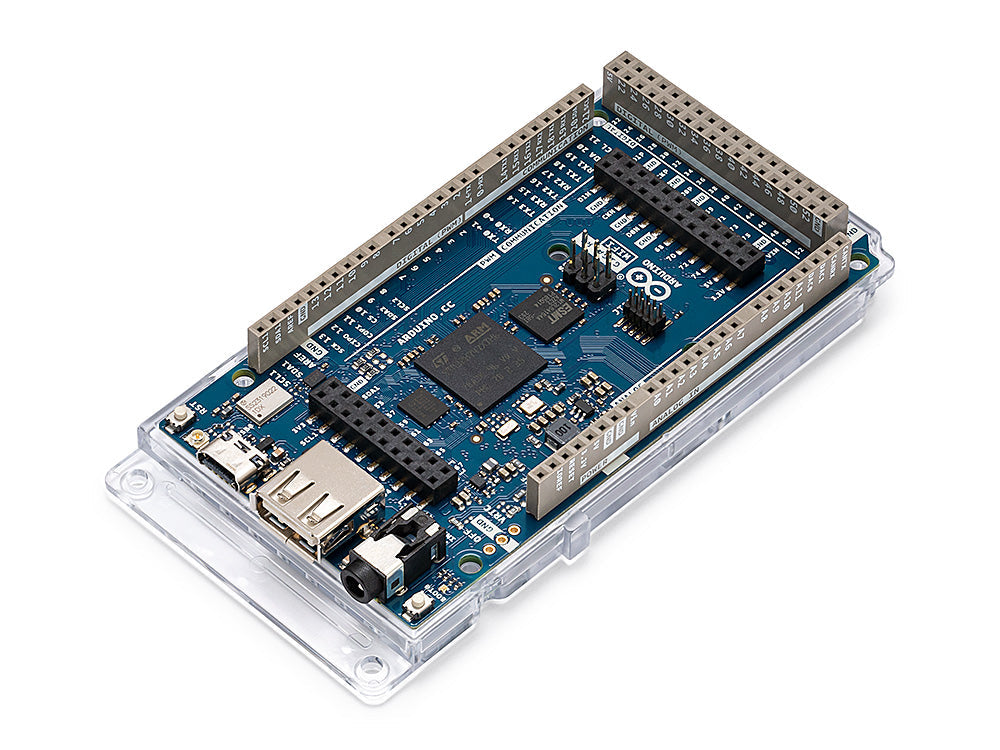

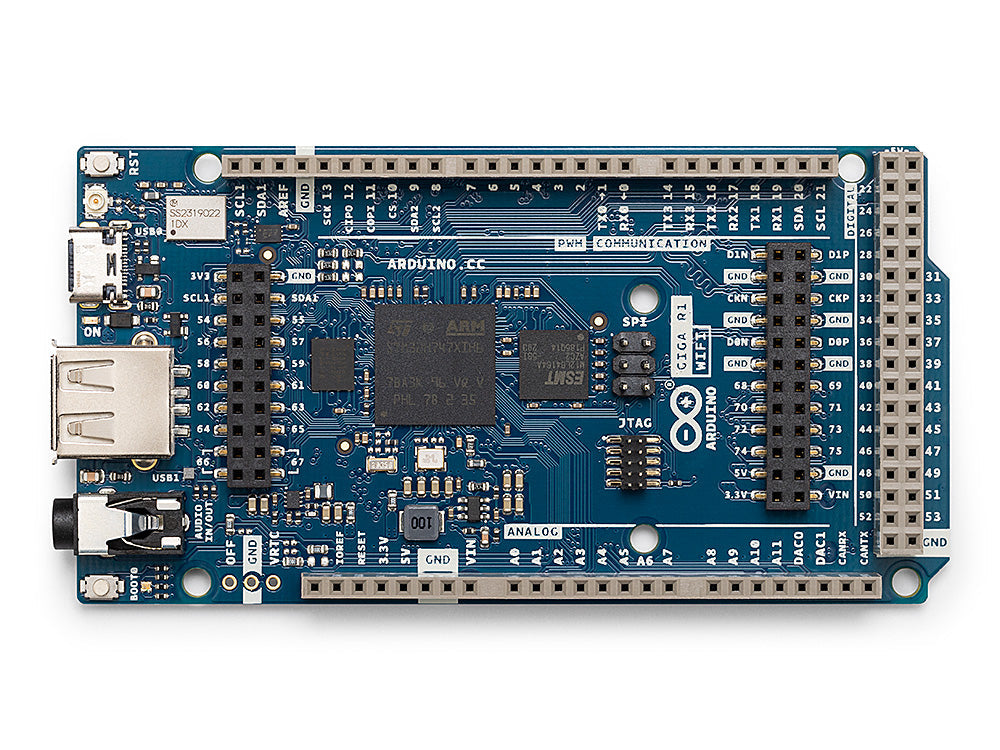

Arduino GIGA R1 WiFi
Arduino GIGA R1 WiFi
The Arduino GIGA R1 WiFi is Arduino's most capable maker board: a dual-core STM32H747XI (Cortex-M7 at 480 MHz and Cortex-M4 at 240 MHz) in the familiar Mega/Due form factor, with Wi-Fi and Bluetooth Low Energy on board. It is built for projects that outgrow a classic Uno: audio synthesis, graphics, robotics, home automation and anything that needs many I/O pins and real processing headroom. The two cores can be programmed separately, so you can run MicroPython on one and Arduino code on the other.
- Microcontroller: STM32H747XI, dual core (Cortex-M7 480 MHz + Cortex-M4 240 MHz)
- Memory: 2 MB flash, 1 MB RAM, plus 16 MB external flash and 8 MB SDRAM
- Wireless: Wi-Fi 802.11 b/g/n and Bluetooth Low Energy (Murata 1DX), onboard antenna
- Security: ATECC608A crypto chip
- I/O: 76 GPIO, 12 analog inputs, 2 DAC, 4 UART, 3 I2C, 2 SPI, CAN FD
- Connectors: USB-C (programming, HID), USB-A host, 3.5 mm audio jack, camera and display connectors
- Operating voltage 3.3 V, input 6–24 V via VIN
- Dimensions: 101.6 x 53.3 mm (same as Mega/Due)
- Compatible with the Arduino GIGA Display Shield
Official Arduino product (ABX00063). Shipped from EU stock, typically delivered within 4–7 business days in Sweden.
