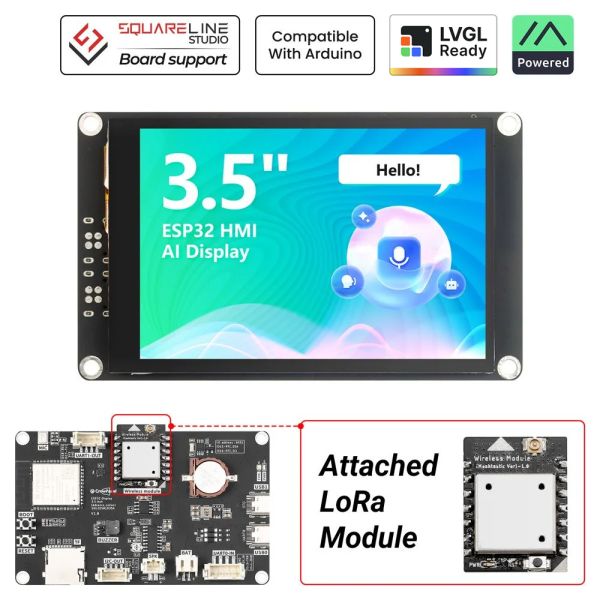

The CrowPanel Advance 3.5" supplied with the SX1262 LoRa plug-in module and an antenna, so it can run Meshtastic as a touchscreen node on a desk or wall. The wireless module sits in the replaceable slot on the back, the same system as on the other CrowPanel Advance panels. Without Meshtastic it is a general ESP32-S3 HMI board for Arduino, ESP-IDF, LVGL or PlatformIO projects, with microSD, microphone, speaker output and a battery connector with charge management.
Specifications
- MCU: ESP32-S3-WROOM-1-N16R8, dual-core up to 240 MHz, 16 MB flash, 8 MB PSRAM
- Wireless: Wi-Fi 2.4 GHz 802.11 b/g/n, Bluetooth 5.0 LE
- LoRa: SX1262 plug-in module, 868/915 MHz, 3.5 dBi antenna on IPEX-1
- Display: 3.5" IPS, 480 × 320, ILI9488, capacitive single touch, approx. 400 cd/m²
- Interfaces: USB-C, UART, I2C, microSD slot, speaker port, microphone, battery socket
- Other: real-time clock, audio amplifier, battery charge management
- Power: 5 V / 2 A via USB-C or UART terminal
- Operating temperature: −20 to +70 °C
- Dimensions: 101.4 × 63.3 × 15.8 mm
- Weight: 120 g
- Not included: battery, GPS, case
- Manufacturer part number: DIS01835A-3
In the box
- 1 × CrowPanel Advance 3.5" ESP32-S3 display
- 1 × SX1262 wireless module for Meshtastic with antenna
- 1 × USB-A to USB-C cable
- 1 × Crowtail/Grove 4-pin DuPont cable
Set the region to EU 868 MHz in the Meshtastic app.
