Pololu Tic T834 USB Multi-Interface Stepper Motor Controller (low voltage)
Pololu Tic T834 USB Multi-Interface Stepper Motor Controller (low voltage)
Free shipping within Sweden from 470 SEK
Under 470 SEK: 65 SEK. Rest of the EU from 229 SEK, depending on weight. Every parcel is tracked.
Need a larger quantity?
Volume pricing for schools and companies
Get a quote with price and lead time for larger quantities.
For schools, companies, clubs and project orders.
Order-to-ship: ordered from our distributor when you place your order and shipped to you from Kalmar, Sweden.
The Pololu Tic T834 is a low-voltage stepper motor controller based on the TI DRV8834 driver, running from 2.5 V to 10.8 V – the Tic for battery-powered robots and small steppers. It supports six control interfaces including USB, serial, I2C, RC, analog and encoder inputs and is configured over USB with free software.
Highlights
- One bipolar stepper motor; open-loop speed or position control
- 2.5–10.8 V; about 1.5 A continuous per phase without heat sink, 2 A peak with cooling

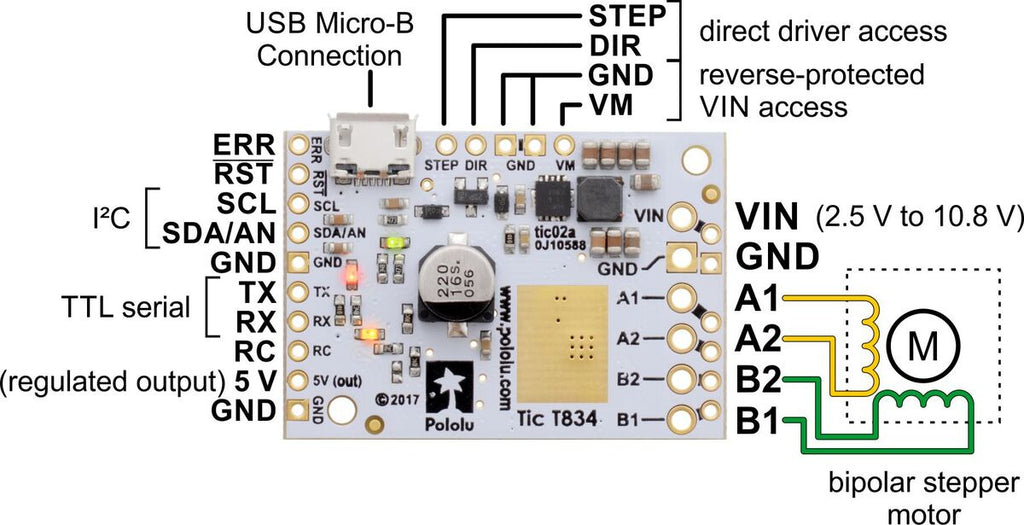

- Interfaces: USB, TTL serial (5 V), I2C, RC servo pulses, analog voltage, quadrature encoder, STEP/DIR
- Microstepping full to 1/32 step; up to 50 000 steps per second
- Free configuration software for Windows, Linux and macOS
In the box

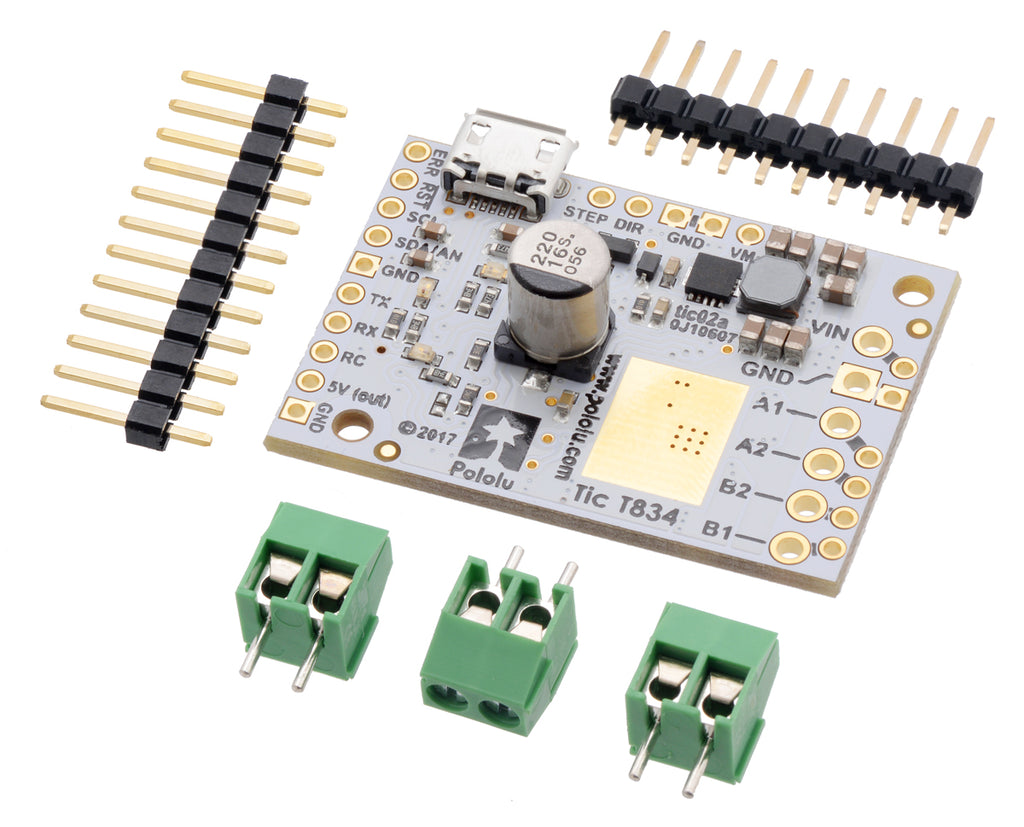

Board with male headers and terminal blocks included, not soldered.
Documentation: Pololu product page and user's guide.
Manufacturer: Pololu Corporation, Las Vegas, USA. Importer: Gadwave, Kalmar, Sweden.
