Pololu Motoron M3S256 Triple Motor Controller Shield Kit for Arduino
Pololu Motoron M3S256 Triple Motor Controller Shield Kit for Arduino
Free shipping within Sweden from 470 SEK
Under 470 SEK: 65 SEK. Rest of the EU from 229 SEK, depending on weight. Every parcel is tracked.
Need a larger quantity?
Volume pricing for schools and companies
Get a quote with price and lead time for larger quantities.
For schools, companies, clubs and project orders.
Order-to-ship: ordered from our distributor when you place your order and shipped to you from Kalmar, Sweden.

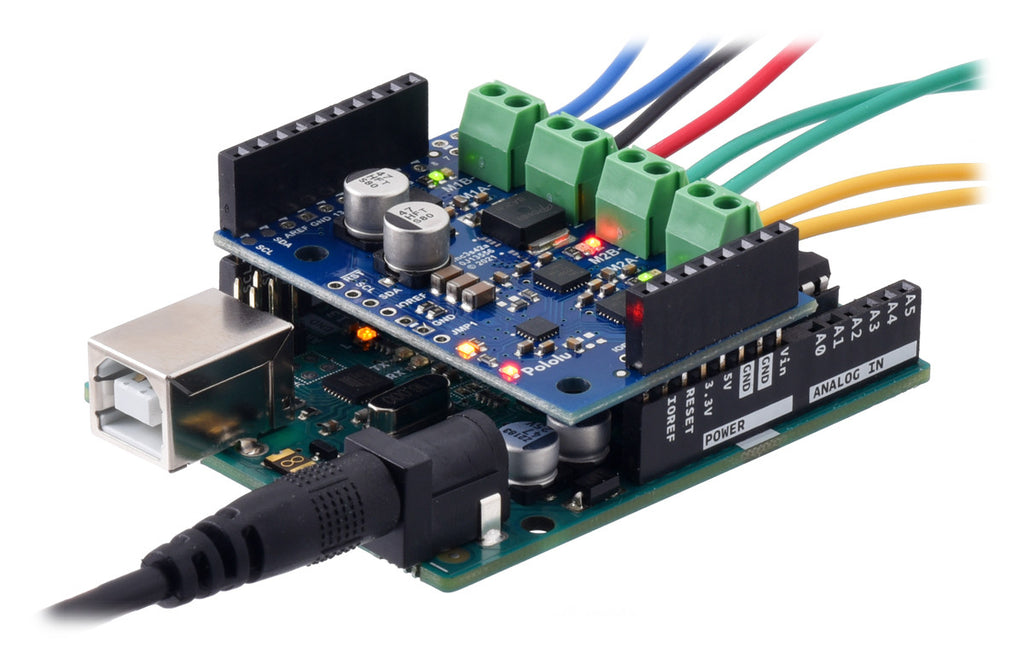

The Pololu Motoron M3S256 is an Arduino shield that controls up to three brushed DC motors over I2C, so it needs no PWM pins or timers on the Arduino. Several units can be stacked to control more motors – six or nine motors from one UNO. This kit version includes header and terminal block options that the user solders in.
Highlights
- 3 bidirectional brushed DC motor channels; boards stackable
- 4.5–48 V (recommended max nominal battery ~36 V); 2.0 A continuous per motor, 6.4 A peak
- I2C up to 400 kHz with optional CRC; logic 3.0–5.5 V; Arduino library provided
- PWM frequency selectable 1–80 kHz
- Reverse-voltage protection on the motor supply
In the box

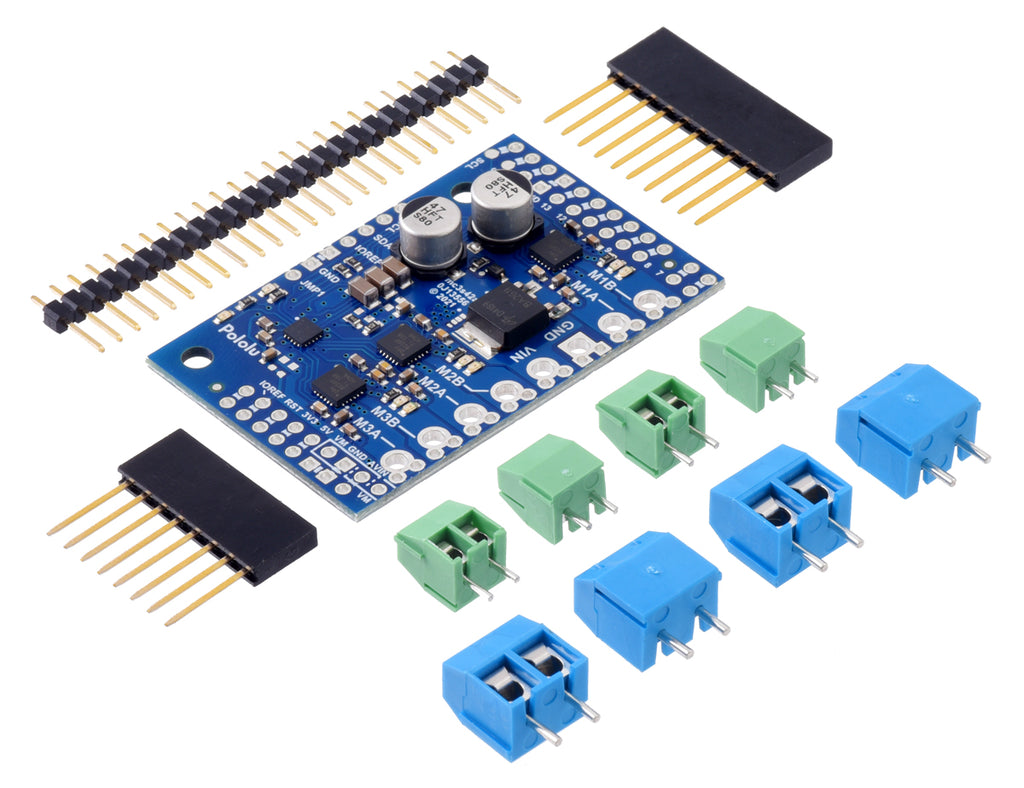

Kit: board with stackable female headers, 3.5 mm and 5 mm terminal blocks and a male header included, not soldered.
Documentation: Pololu product page and user's guide.
Manufacturer: Pololu Corporation, Las Vegas, USA. Importer: Gadwave, Kalmar, Sweden.
