Waveshare 7" DSI LCD — 800×480 Capacitive Touchscreen for Raspberry Pi
Waveshare 7" DSI LCD — 800×480 Capacitive Touchscreen for Raspberry Pi
Free shipping within Sweden from 470 SEK
Under 470 SEK: 65 SEK. Rest of the EU from 229 SEK, depending on weight. Every parcel is tracked.
Need a larger quantity?
Volume pricing for schools and companies
Get a quote with price and lead time for larger quantities.
For schools, companies, clubs and project orders.
Order-to-ship: ordered from our distributor when you place your order and shipped to you from Kalmar, Sweden.

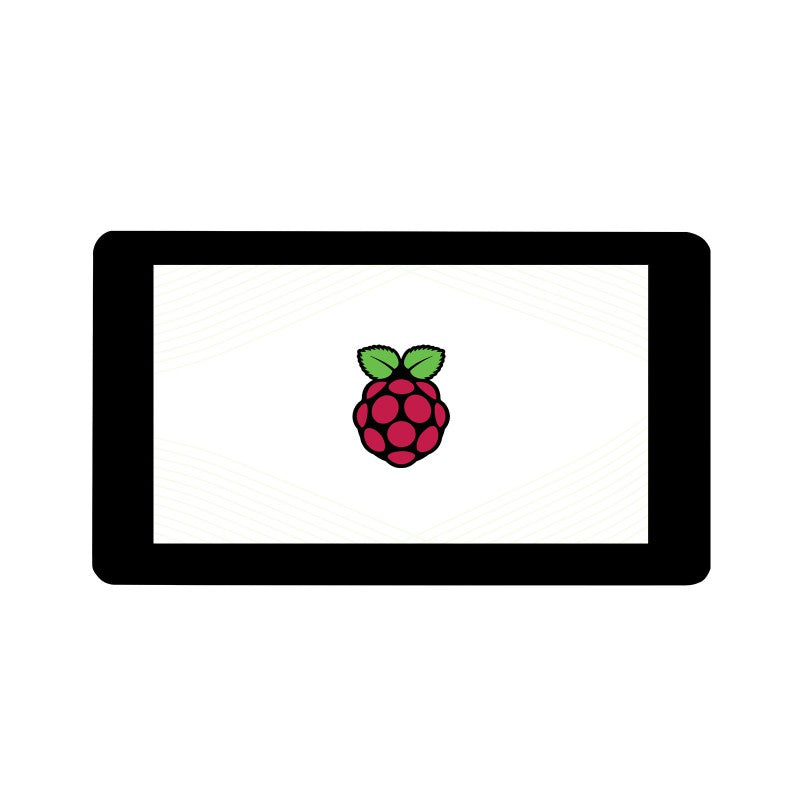

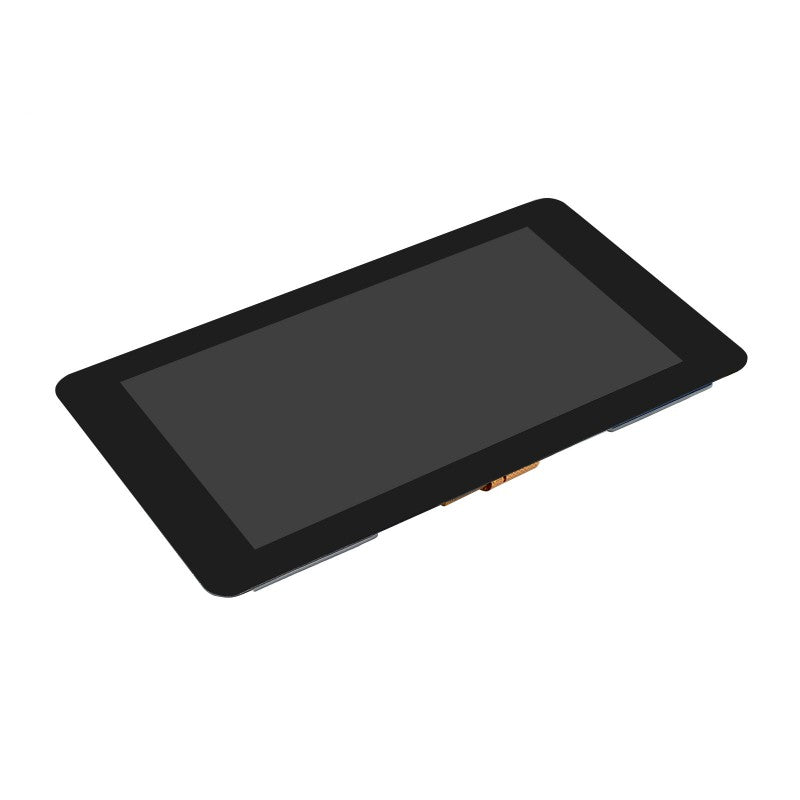

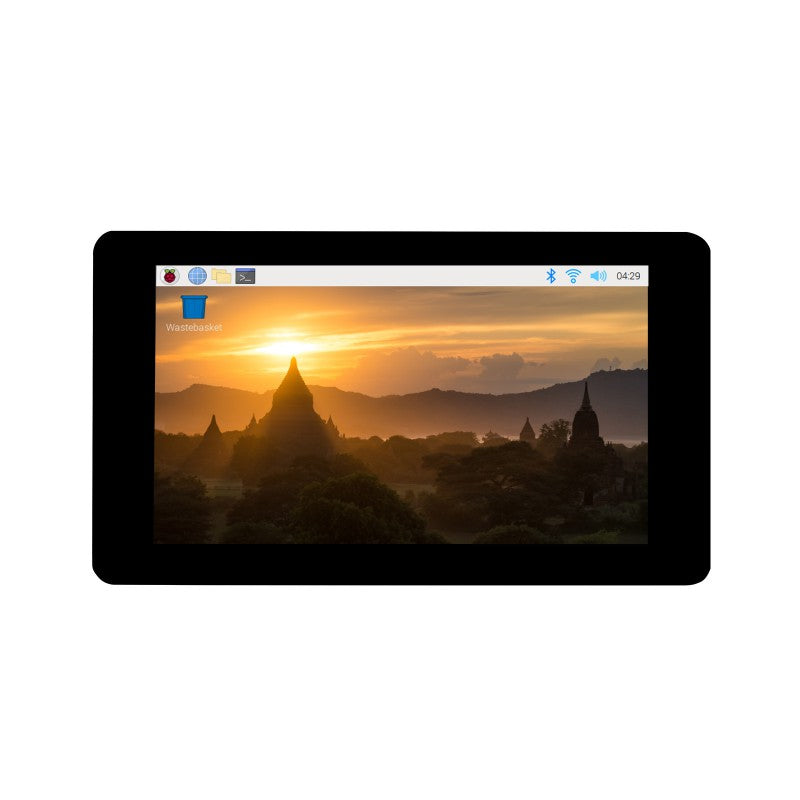

The Waveshare 7" DSI LCD is a 7-inch 800×480 capacitive touch display that connects to the Raspberry Pi's MIPI DSI port instead of HDMI, leaving the HDMI ports free. It supports 5-point touch on Raspberry Pi OS with a toughened glass touch panel and is powered from the Pi's 40-pin GPIO header, so the whole setup needs only one cable – a clean choice for a Home Assistant dashboard or a 3D-printer screen.
Highlights
- 7" panel, 800×480, toughened glass capacitive touch (5 points)
- DSI video and I2C touch – HDMI and USB ports stay free
- Powered from the 40-pin GPIO header
- Software backlight control on Raspberry Pi OS
- Raspberry Pi 5, 4B, 3B+/3A+/3B, 2B, B+, A+; CM3/CM4 via adapter board
Note
DSI only – not for PCs or other HDMI devices. Raspberry Pi 5 uses the 22-pin DSI cable.
Documentation: Waveshare wiki.
Manufacturer: Waveshare, Shenzhen. Importer: Gadwave, Kalmar, Sweden.
