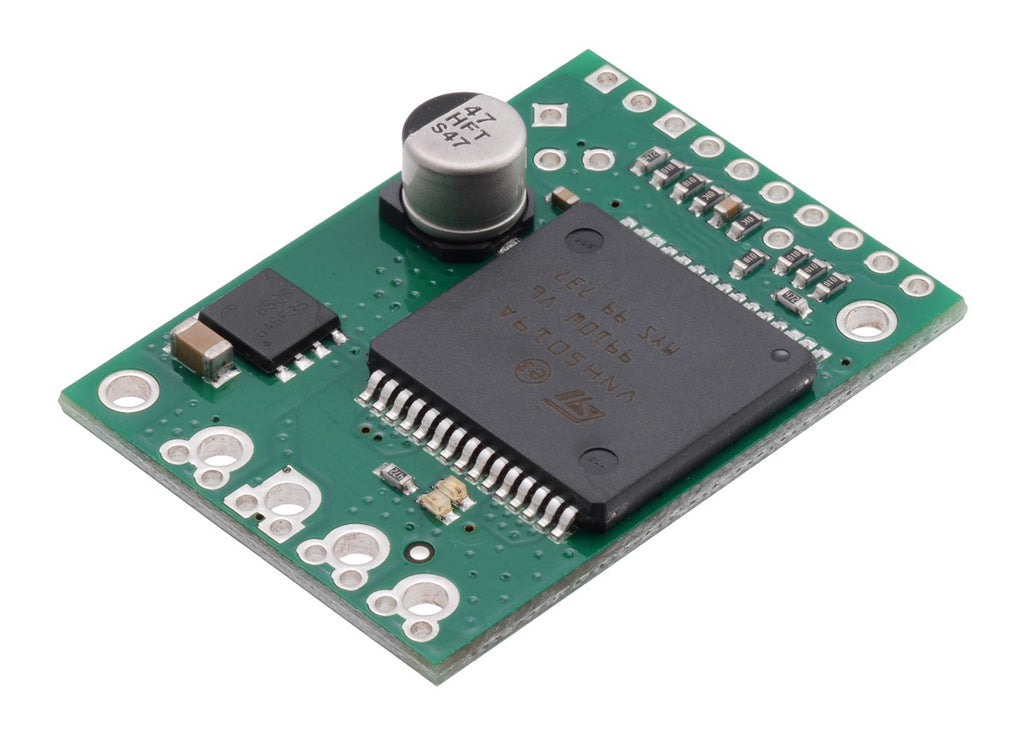

This is a breakout board for ST's VNH5019 high-power H-bridge, used to control one brushed DC motor in both directions. It is rated for 12 A continuous with a 5.5–24 V motor supply and supports ultrasonic PWM up to 20 kHz for quieter operation. It includes an analog current sense output and the VNH5019's built-in protection – a robust, forgiving driver for a mid-size robot or a 12 V actuator.
Highlights
- One brushed DC motor, bidirectional
- 5.5–24 V; 12 A continuous, 30 A peak
- PWM up to 20 kHz; INA/INB direction, ENA/ENB enable; 3 V compatible logic
- Analog current sense output ~140 mV/A
- Protection: reverse voltage, over/under voltage, over-temperature, over-current, short to ground/VCC
In the box
Board with 20-pin breakaway male header and two 2-pin terminal blocks included, not soldered.
Documentation: Pololu product page.
Manufacturer: Pololu Corporation, Las Vegas, USA. Importer: Gadwave, Kalmar, Sweden.
