The Pololu Tic T825 is a USB-configurable controller for basic open-loop speed or position control of one bipolar stepper motor, built around the TI DRV8825 driver. It supports six control methods including USB, serial, I2C, RC pulses, analog voltage and encoder input. Setup and monitoring are handled through Pololu's free configuration software.
Highlights
- One bipolar stepper motor; open-loop speed or position control
- 8.5–45 V; about 1.5 A continuous per phase without heat sink, 2.5 A peak with cooling
- Interfaces: USB, TTL serial (5 V), I2C, RC servo pulses, analog voltage, quadrature encoder, STEP/DIR
- Microstepping full to 1/32 step; up to 50 000 steps per second
- Built-in 5 V regulator; reverse protection on the motor supply up to 40 V
In the box

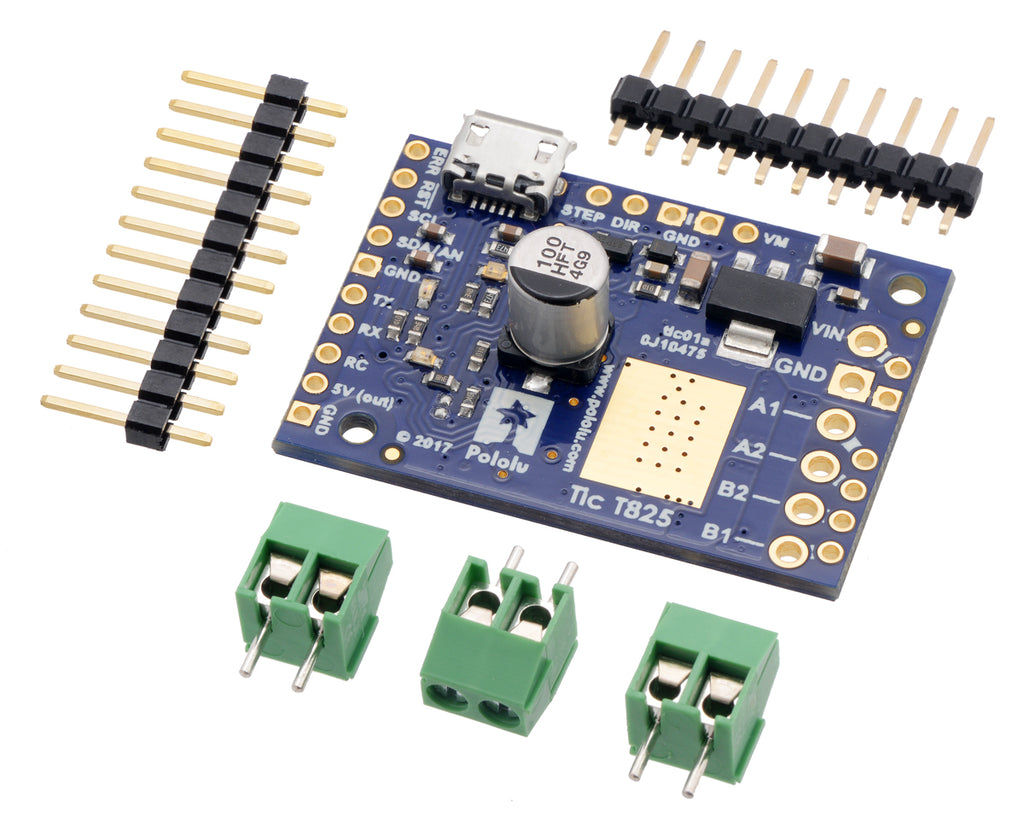

Board with male headers and terminal blocks included, not soldered.
Documentation: Pololu product page and user's guide.
Manufacturer: Pololu Corporation, Las Vegas, USA. Importer: Gadwave, Kalmar, Sweden.
