Pololu Tic T249 USB Multi-Interface Stepper Motor Controller
Pololu Tic T249 USB Multi-Interface Stepper Motor Controller
Free shipping within Sweden from 470 SEK
Under 470 SEK: 65 SEK. Rest of the EU from 229 SEK, depending on weight. Every parcel is tracked.
Need a larger quantity?
Volume pricing for schools and companies
Get a quote with price and lead time for larger quantities.
For schools, companies, clubs and project orders.
Order-to-ship: ordered from our distributor when you place your order and shipped to you from Kalmar, Sweden.

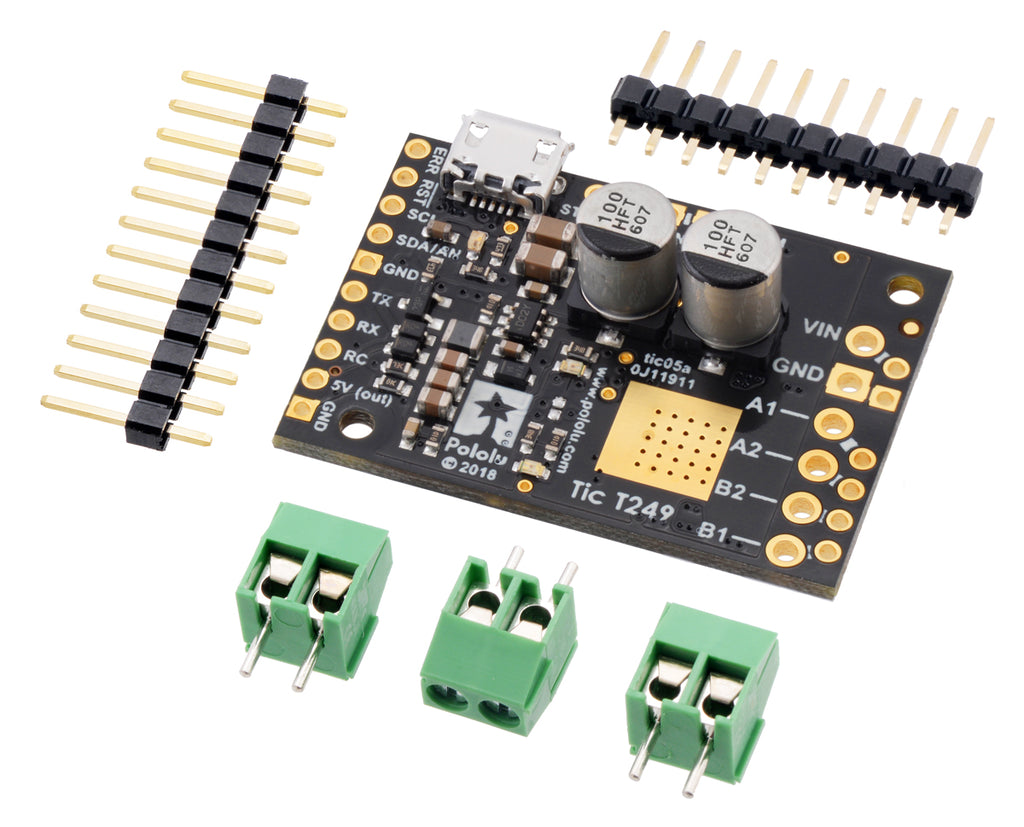

The Pololu Tic T249 is a USB-configurable controller for one bipolar stepper motor, built on Toshiba's TB67S249FTG driver with automatic current reduction based on load – cooler motors and less wasted power than a fixed-current driver. It supports six control interfaces and runs from 10 V to 47 V at about 1.8 A per phase without a heat sink.
Highlights
- One bipolar stepper motor; open-loop speed or position control
- 10–47 V; about 1.8 A continuous per phase without heat sink, 4.5 A peak with cooling

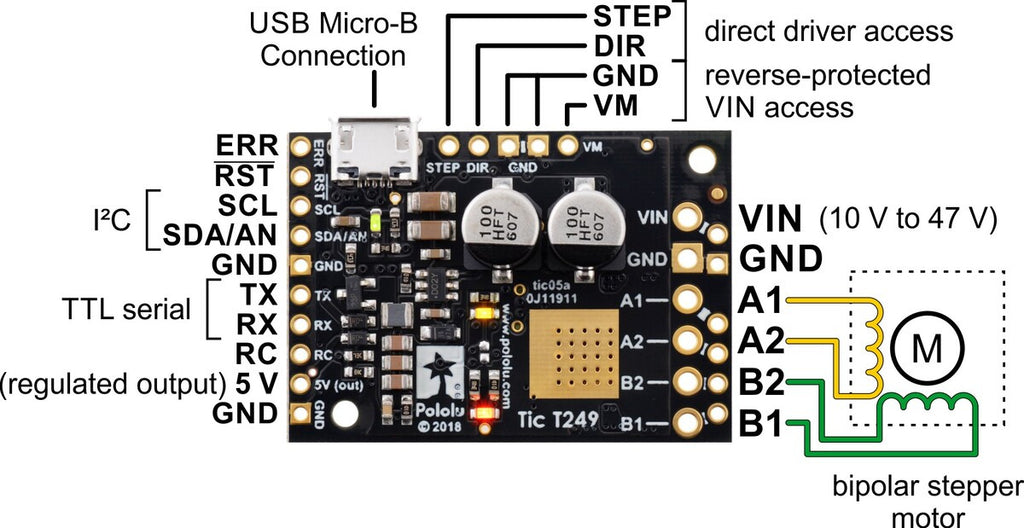

- Interfaces: USB, TTL serial (5 V), I2C, RC servo pulses, analog voltage, quadrature encoder, STEP/DIR
- Automatic Gain Control (AGC) adapts motor current to load
- Microstepping full to 1/32 step; onboard 5 V regulator; free configuration software
In the box
Board with male headers and terminal blocks included, not soldered.
Documentation: Pololu product page and user's guide.
Manufacturer: Pololu Corporation, Las Vegas, USA. Importer: Gadwave, Kalmar, Sweden.
