Pololu Tic 36v4 USB Multi-Interface High-Power Stepper Motor Controller
Pololu Tic 36v4 USB Multi-Interface High-Power Stepper Motor Controller
Free shipping within Sweden from 470 SEK
Under 470 SEK: 65 SEK. Rest of the EU from 229 SEK, depending on weight. Every parcel is tracked.
Need a larger quantity?
Volume pricing for schools and companies
Get a quote with price and lead time for larger quantities.
For schools, companies, clubs and project orders.
Order-to-ship: ordered from our distributor when you place your order and shipped to you from Kalmar, Sweden.
The Pololu Tic 36v4 is a USB-configurable stepper motor controller for high-power bipolar stepper motors. It uses discrete MOSFET H-bridges and supports six control interfaces, so it can be driven from a computer, microcontroller, RC receiver, potentiometer or encoder. It runs from 8 V to 50 V and offers microstepping down to 1/256 step – a complete motion controller for a linear axis, a turntable or a camera slider without writing a stepper driver yourself.
Highlights
- One bipolar stepper motor; open-loop speed or position control
- 8–50 V; about 4 A continuous per phase without heat sink, 6 A max with cooling

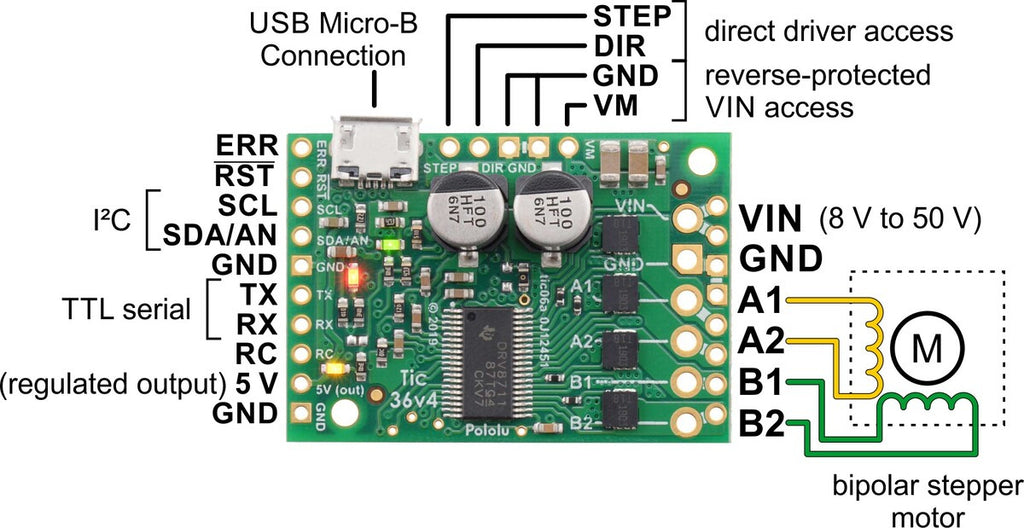

- Interfaces: USB, TTL serial (5 V), I2C, RC servo pulses, analog voltage, quadrature encoder, STEP/DIR
- Microstepping full to 1/256 step; up to 50 000 steps per second
- Onboard 5 V regulator, digitally adjustable current limit; free configuration software for Windows, Linux and macOS
Versions

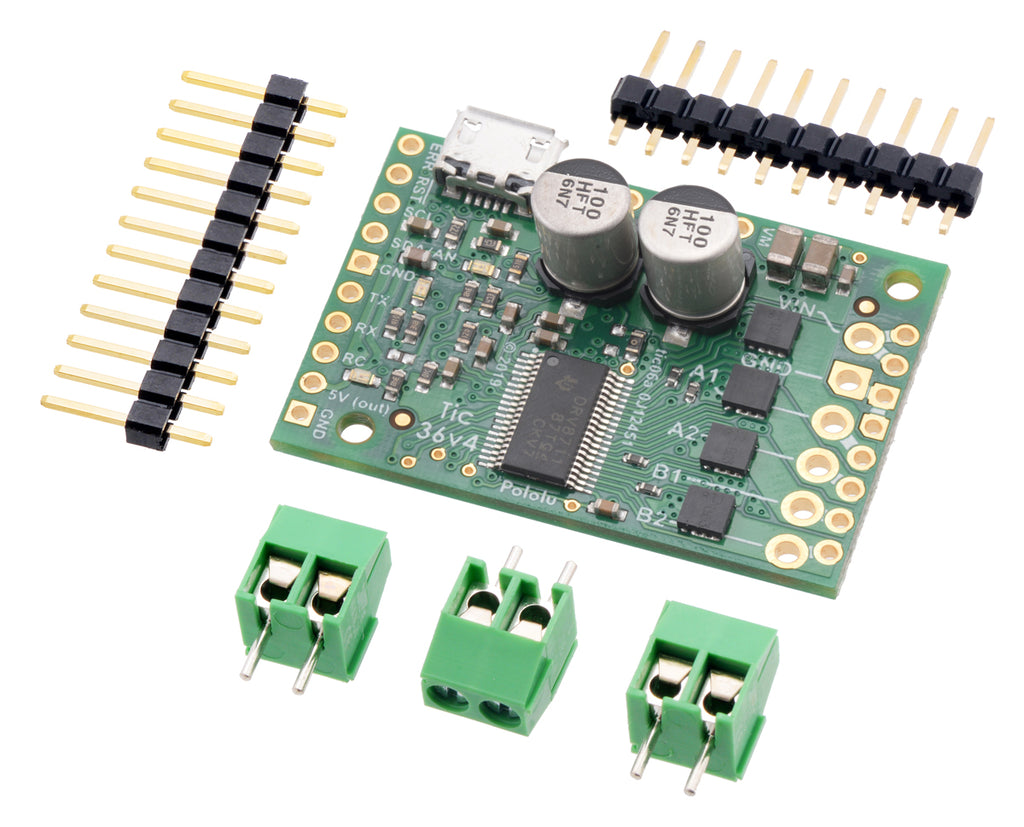

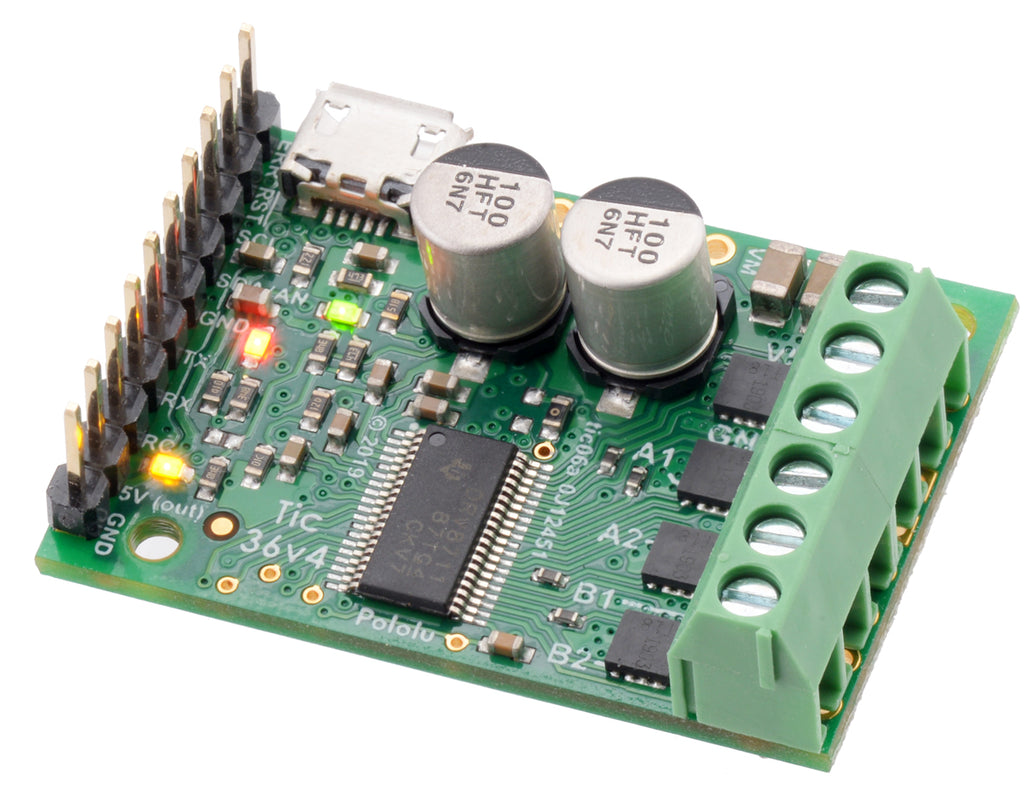

Connectors unsoldered: headers and terminal blocks included loose. Connectors soldered: header pins and terminal blocks pre-installed.
Documentation: Pololu product page and user's guide.
Manufacturer: Pololu Corporation, Las Vegas, USA. Importer: Gadwave, Kalmar, Sweden.
