Pololu TB67S249FTG Stepper Motor Driver Carrier — Full Breakout, 10–47 V
Pololu TB67S249FTG Stepper Motor Driver Carrier — Full Breakout, 10–47 V
Free shipping within Sweden from 470 SEK
Under 470 SEK: 65 SEK. Rest of the EU from 229 SEK, depending on weight. Every parcel is tracked.
Need a larger quantity?
Volume pricing for schools and companies
Get a quote with price and lead time for larger quantities.
For schools, companies, clubs and project orders.
Order-to-ship: ordered from our distributor when you place your order and shipped to you from Kalmar, Sweden.

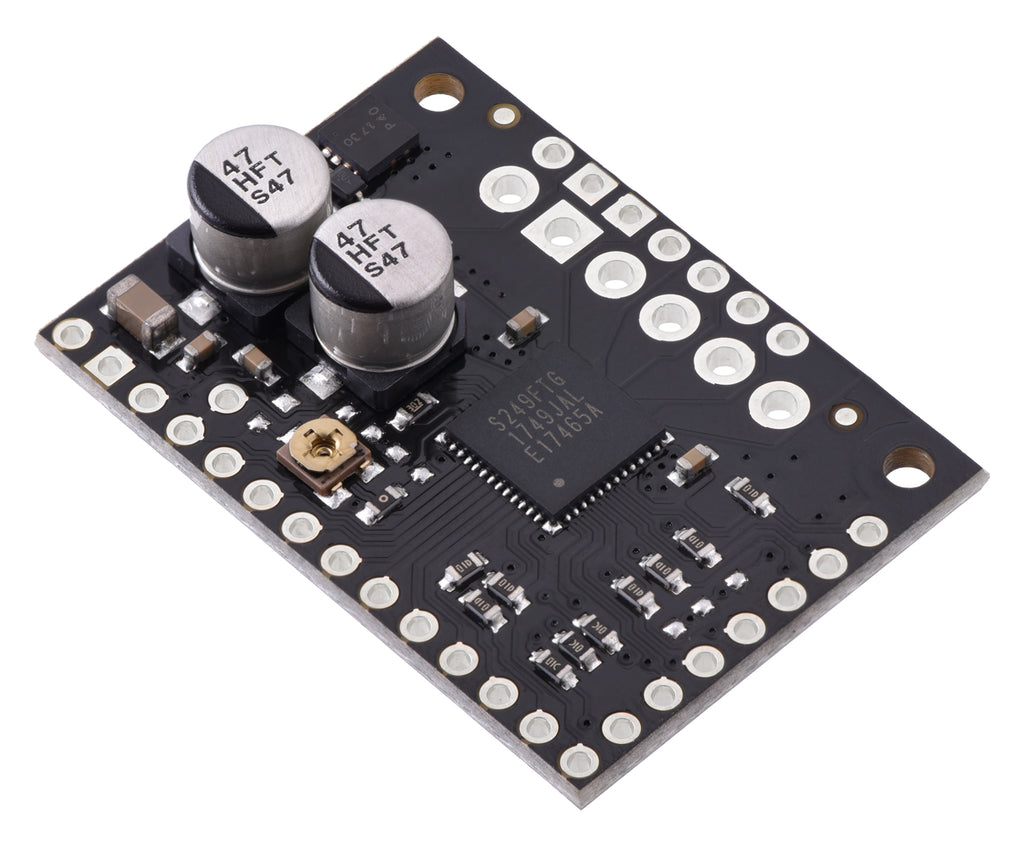

This is a full breakout board for Toshiba's TB67S249FTG microstepping bipolar stepper motor driver – a step/dir driver for a 3D printer, CNC or laser axis that needs more voltage and protection than an A4988. It supports a 10 V to 47 V motor supply and about 1.7 A per phase continuously without a heat sink. It includes adjustable current limiting, six microstep resolutions and built-in protection features.
Highlights
- One bipolar stepper motor; Toshiba TB67S249FTG driver
- 10–47 V; about 1.7 A continuous per phase without cooling, 4.5 A peak
- Step/direction interface, 3.3 V and 5 V logic; full, 1/2, 1/4, 1/8, 1/16 and 1/32 microstepping
- Adjustable current limit via potentiometer; Active Gain Control; 5 V regulated output

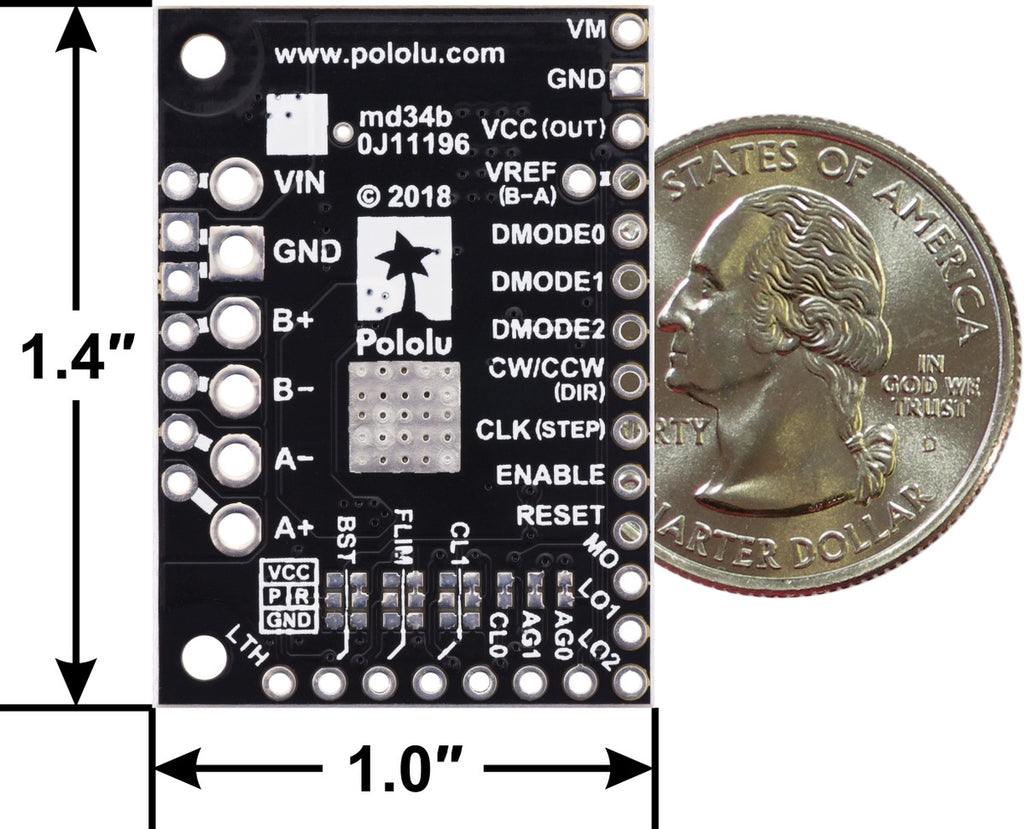

- Board 1.0 × 1.4 in; under-voltage, over-current, over-temperature, open-load and reverse-voltage protection
In the box
Board with two 1×15 breakaway male headers and three 2-pin terminal blocks included, not soldered.
Documentation: Pololu product page.
Manufacturer: Pololu Corporation, Las Vegas, USA. Importer: Gadwave, Kalmar, Sweden.
