Pololu Jrk G2 24v13 USB Motor Controller with Feedback
Pololu Jrk G2 24v13 USB Motor Controller with Feedback
Free shipping within Sweden from 470 SEK
Under 470 SEK: 65 SEK. Rest of the EU from 229 SEK, depending on weight. Every parcel is tracked.
Need a larger quantity?
Volume pricing for schools and companies
Get a quote with price and lead time for larger quantities.
For schools, companies, clubs and project orders.
Order-to-ship: ordered from our distributor when you place your order and shipped to you from Kalmar, Sweden.
The Pololu Jrk G2 24v13 is a USB motor controller for closed-loop speed or position control of a single brushed DC motor – the big brother of the 21v3 for linear actuators, winches and heavy gearmotors. It supports five control interfaces and is configured through Pololu's free software on Windows, Linux and macOS. It operates from 6.5 V to 40 V and delivers up to 13 A continuous without a heat sink.
Highlights
- One brushed DC motor; closed-loop speed or position control, or open loop
- 6.5–40 V (recommended max 34 V, max nominal battery 28 V); 13 A continuous without heat sink; hardware current limiting

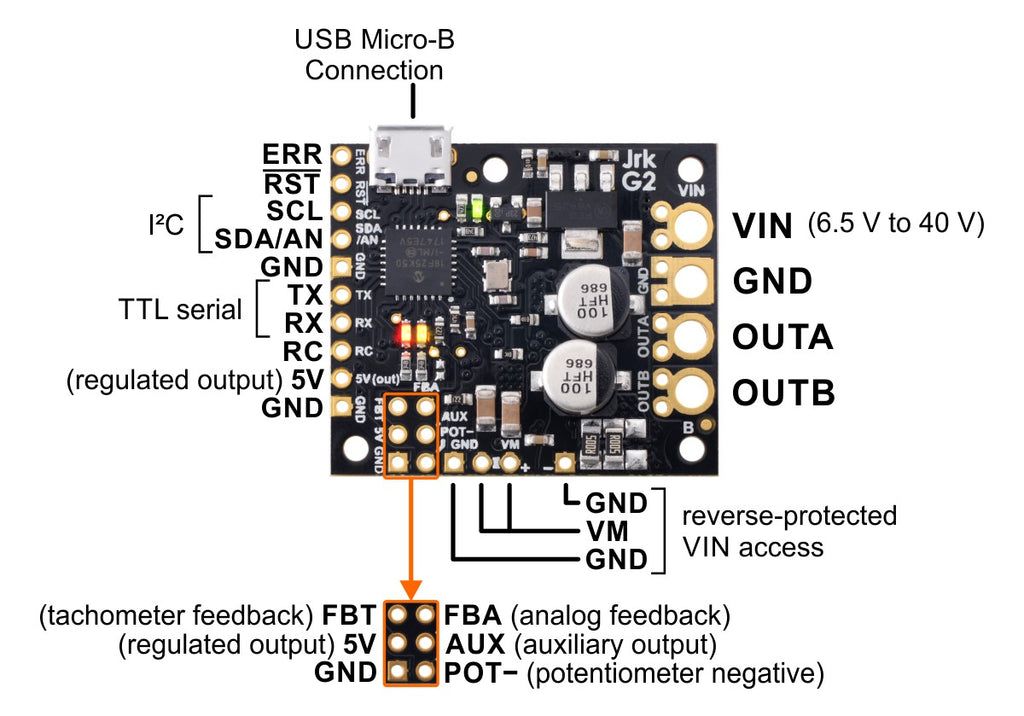

- Interfaces: USB, TTL serial (5 V), I2C, analog voltage, RC servo pulses
- Feedback: analog 0–5 V, frequency, or none
- PWM 20 kHz (configurable 5 kHz); reversed-power protection; board about 1.4 × 1.2 in
In the box
Board with 0.1" breakaway male header and two 2-pin 5 mm terminal blocks included, not soldered.
Documentation: Pololu product page and user's guide.
Manufacturer: Pololu Corporation, Las Vegas, USA. Importer: Gadwave, Kalmar, Sweden.
