Pololu Dual MC33926 Motor Driver for Raspberry Pi (Assembled)
Pololu Dual MC33926 Motor Driver for Raspberry Pi (Assembled)
Free shipping within Sweden from 470 SEK
Under 470 SEK: 65 SEK. Rest of the EU from 229 SEK, depending on weight. Every parcel is tracked.
Need a larger quantity?
Volume pricing for schools and companies
Get a quote with price and lead time for larger quantities.
For schools, companies, clubs and project orders.
Order-to-ship: ordered from our distributor when you place your order and shipped to you from Kalmar, Sweden.

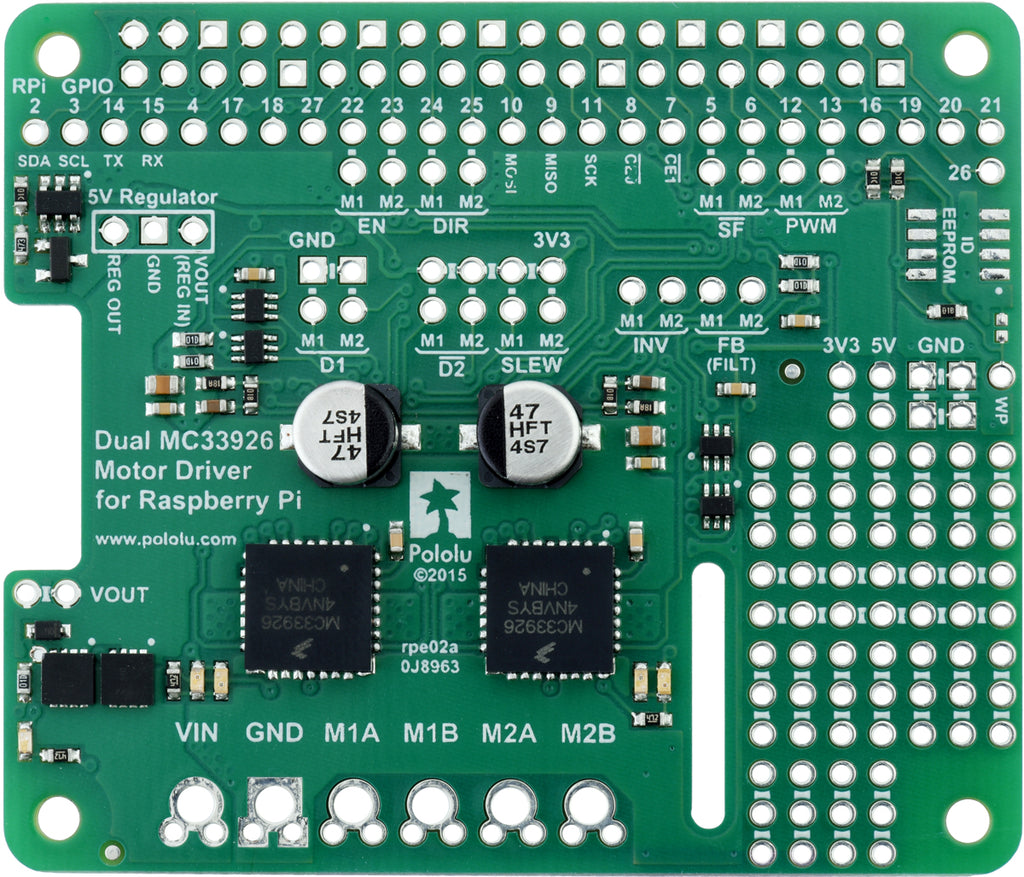

This add-on board lets a Raspberry Pi drive two brushed DC motors using a pair of MC33926 motor driver ICs – the easy route to a small Pi-based rover. It supports 5 V to 28 V motor supplies and delivers up to 3 A continuous per channel. Default pin mappings work with Pololu's Python library, and most of the driver chips' remaining I/O pins are broken out for custom use.
Highlights
- 2 channels, two brushed DC motors, dual MC33926 drivers
- 5–28 V; 3 A continuous, 5 A peak per motor
- Raspberry Pi HAT form factor for all 40-pin models; 6 GPIO for control, 2 status flags
- PWM up to 20 kHz; Python library provided
- Reverse-voltage protection, under-voltage shutdown, short-to-ground/Vcc protection, thermal and current limiting
In the box

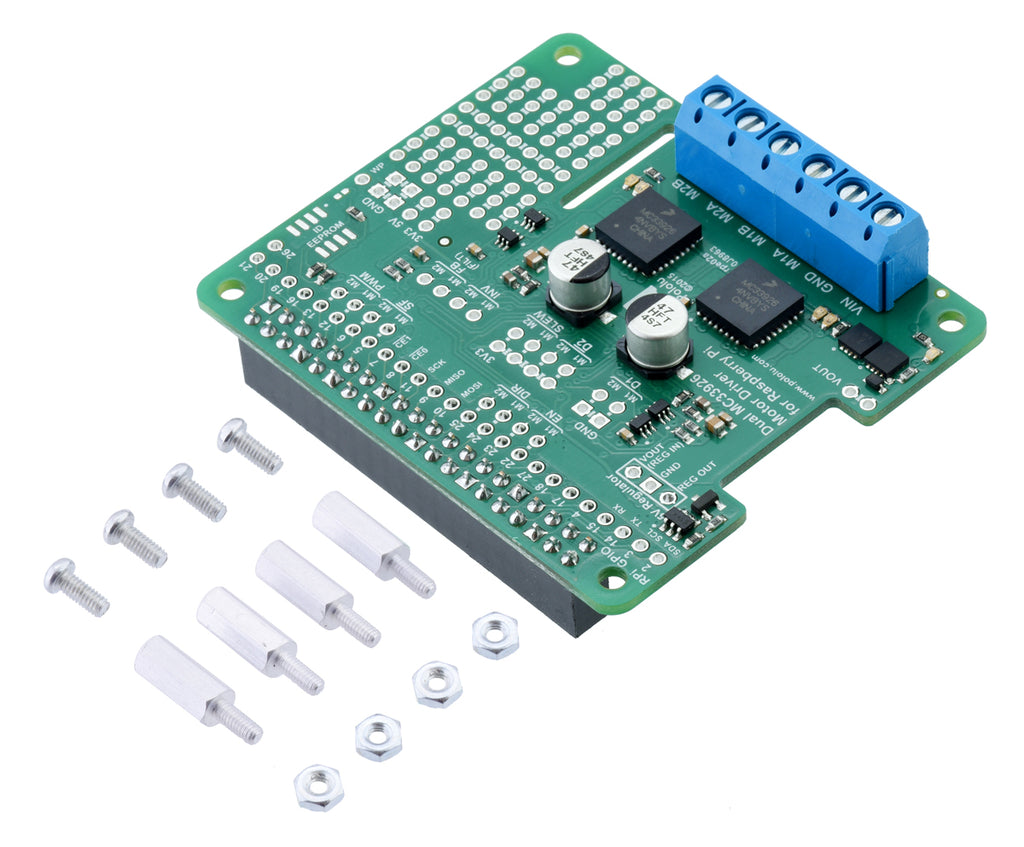

Assembled: 2×20 female header and 6-pin screw terminal strip pre-soldered.
Documentation: Pololu product page and user's guide.
Manufacturer: Pololu Corporation, Las Vegas, USA. Importer: Gadwave, Kalmar, Sweden.
