Pololu Dual G2 High-Power Motor Driver 18v22 for Raspberry Pi (Partial Kit)
Pololu Dual G2 High-Power Motor Driver 18v22 for Raspberry Pi (Partial Kit)
Free shipping within Sweden from 470 SEK
Under 470 SEK: 65 SEK. Rest of the EU from 229 SEK, depending on weight. Every parcel is tracked.
Need a larger quantity?
Volume pricing for schools and companies
Get a quote with price and lead time for larger quantities.
For schools, companies, clubs and project orders.
Order-to-ship: ordered from our distributor when you place your order and shipped to you from Kalmar, Sweden.

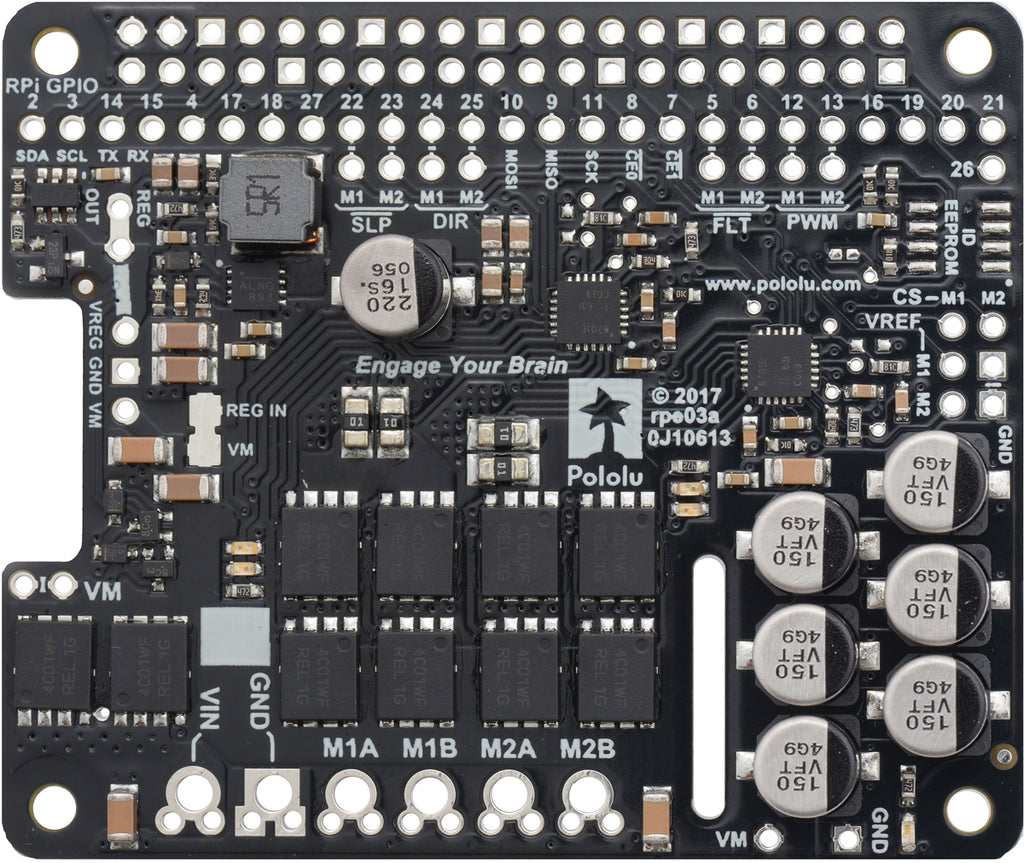

This Raspberry Pi add-on board drives two brushed DC motors using discrete MOSFET H-bridges – the drive stage for a heavy Pi-based rover or robot platform. It accepts 6.5 V to 30 V and can supply 22 A per channel continuously without a heat sink, while its onboard regulator powers the Pi from the same battery. The default GPIO mapping can be changed for custom setups.
Highlights
- 2 channels, two brushed DC motors, bidirectional
- 6.5–30 V (not for 24 V batteries); 22 A continuous per channel without heat sink; current limit ~60 A, adjustable
- Raspberry Pi 40-pin HAT-style header; 6 GPIO for control, 2 for fault status; PWM up to 100 kHz
- Built-in 5 V 2.5 A regulator powers the Raspberry Pi
- Reverse-voltage, undervoltage and short-circuit protection; Python library provided
In the box

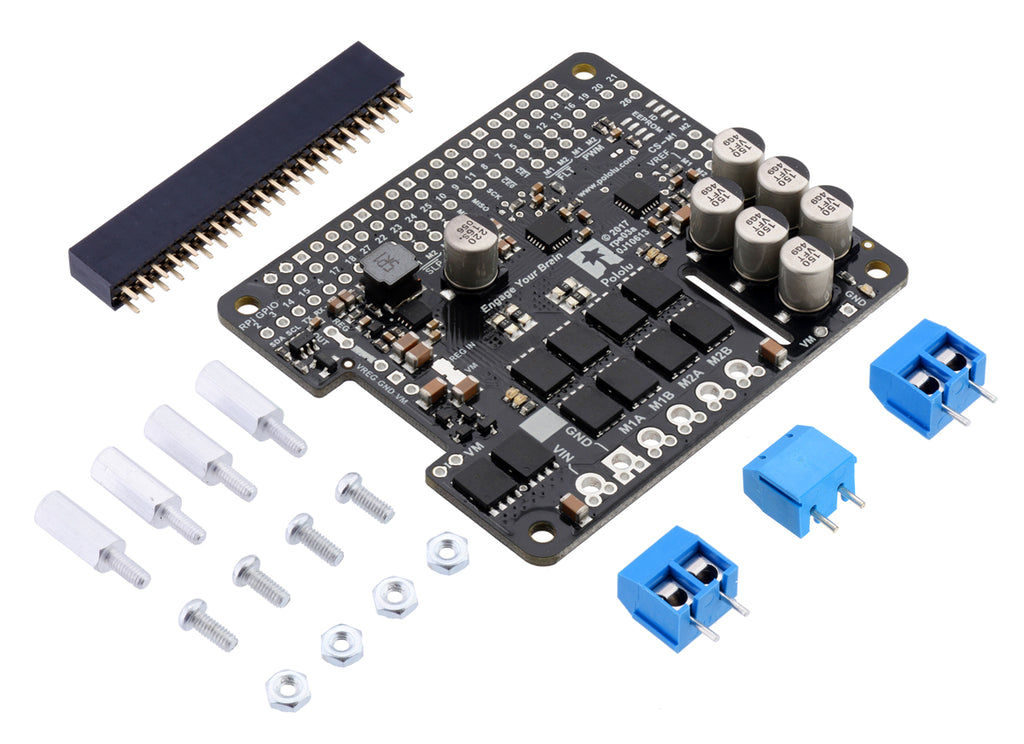

Partial kit: SMD parts installed; 2×20 female header, three 2-pin terminal blocks and mounting hardware included, not soldered.
Documentation: Pololu product page and user's guide.
Manufacturer: Pololu Corporation, Las Vegas, USA. Importer: Gadwave, Kalmar, Sweden.
